Design Creation & Installation of Emergency Evacuation Diagrams

We can provide custom designed evacuation diagrams to your facility or precinct to meet all regulatory requirements and standards.

Emergency Evacuation Diagrams

Emergency Evacuation Diagrams are considered one of the most important requirements pertaining to emergency planning for buildings and precincts within Australia.

Common questions around the requirement to have evacuation diagrams, are whether there is a regulatory requirement to display evacuation diagrams; the answer is YES.

For buildings within QueensLand, the QLD Building Fire Safety Regulation sets out the regulatory requirements to establish, review and maintain building evacuation diagrams.

For buildings and precicnts located within all other Australian States, the WHS Regulation 2017 and Shared Workplaces

FREE!!

Emergency Management Software with Every Diagram

Our Global Leading EVAC One emergency management software provides a next level feature to your emergency evacuation diagrams. Building occupants and visitors can simply tap or scan the QR code and receive your site specific emergency procedures, there exact position in the building / precinct and the location of assembly areas.

ENQUIRE TODAY 1300 607 633

Design & Creation Process Includes:

A comprehensive inspection by one of our accredited Fire Safety and Emergency Planning consultants of your facility or precinct to identify all Emergency Life Safety and Fire Systems installed.

One of our in-house evacuation diagram designers will then design and create your evacuation diagrams to meet all regulatory standards requirements.

Your brand can then be added to the evacuation diagrams.

Your diagram can be printed in almost any size in either landscape or portrait, using laminate, Anodised Aluminium or polycarbonate printing stock.

Aluminium snap-lock frames can be provided, and installation arranged.

What are the Australian Standard Requirements for an evacuation diagram?

Minimum Elements

Australian Standard AS 3745-2010 Clause 3.5.5 lists a range of elements which must be included in an evacuation diagram:

You Are Here symbol
Designated exit points and evacuation paths- Fire extinguishers and types
Fire blankets
Validity Date (this is slightly different for Queensland)
A symbol legend
Location of the workplace & site address/facility name if applicable
"EVACUATION DIAGRAM" heading
Assembly point location either written or in a picture

Optional Elements

Australian Standard AS 3745-2010 Clause 3.5.6 lists some optional elements which may be considered by the EPC for inclusion on the diagrams.

First aid kits & Defibrillators
North direction
Emergency Information –in accordance with your Evacuation Plan
Spill response kits
Direction of door openings for emergency doors
Electrical switchboards
Fire hydrants

Installation of Evacuation Diagrams

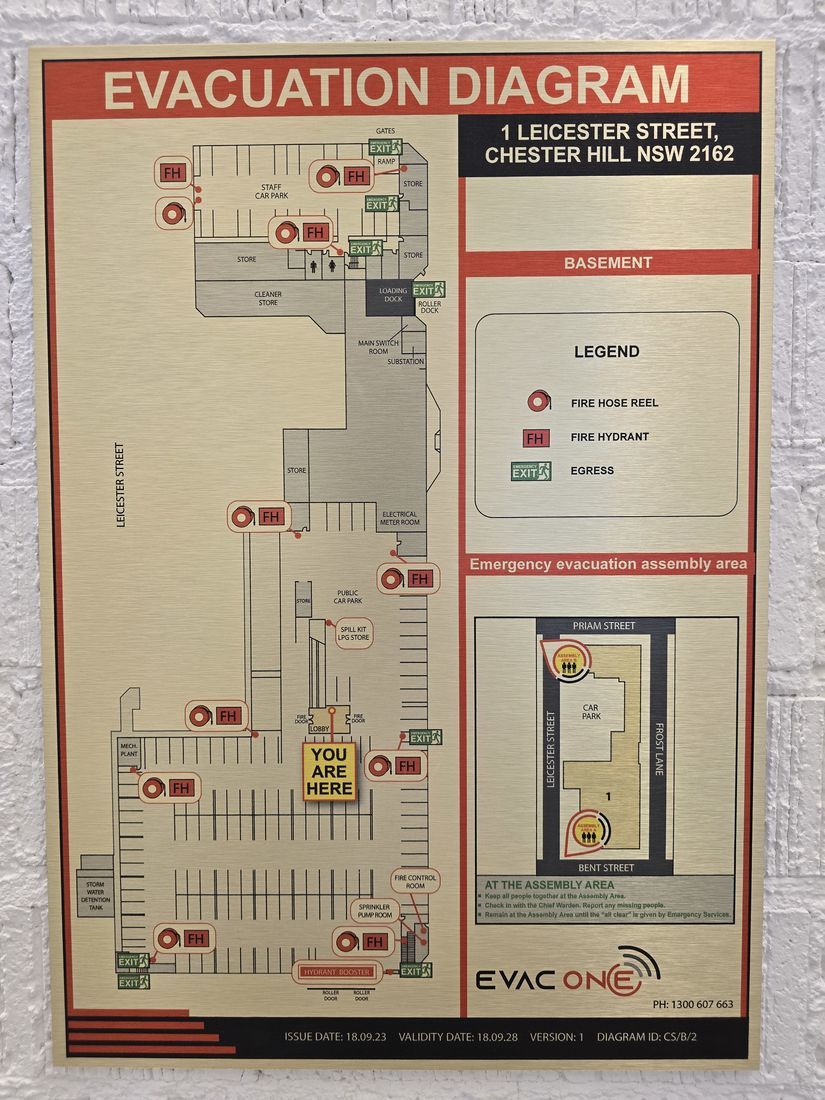

The most important thing to remember when installing Evacuation Diagrams is to follow the position requirements mentioned above – 1200mm to 1600mm off finished floor level.

Evacuation diagrams are often installed to fire doors (e.g. entrance doors to apartments, or hotel rooms, and fire stairs), as well as smoke doors and fire rated walls. In doing so care must be taken to ensure the fire-rating of the door or wall is not impacted by using screws or similar fasteners.
